Nginx 配置动静分离

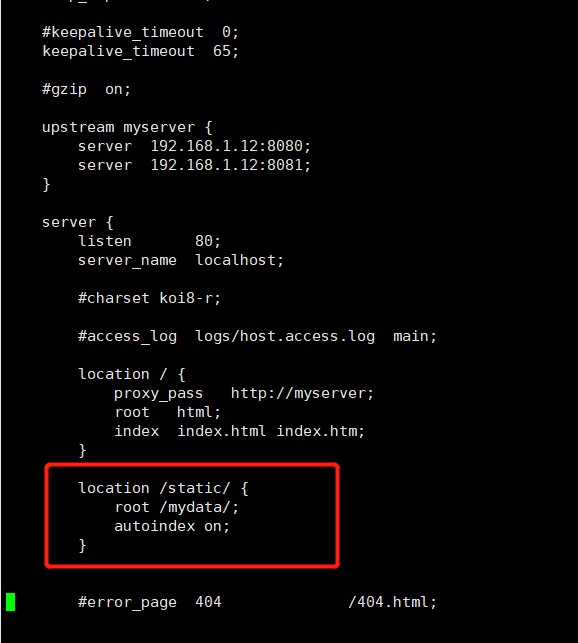

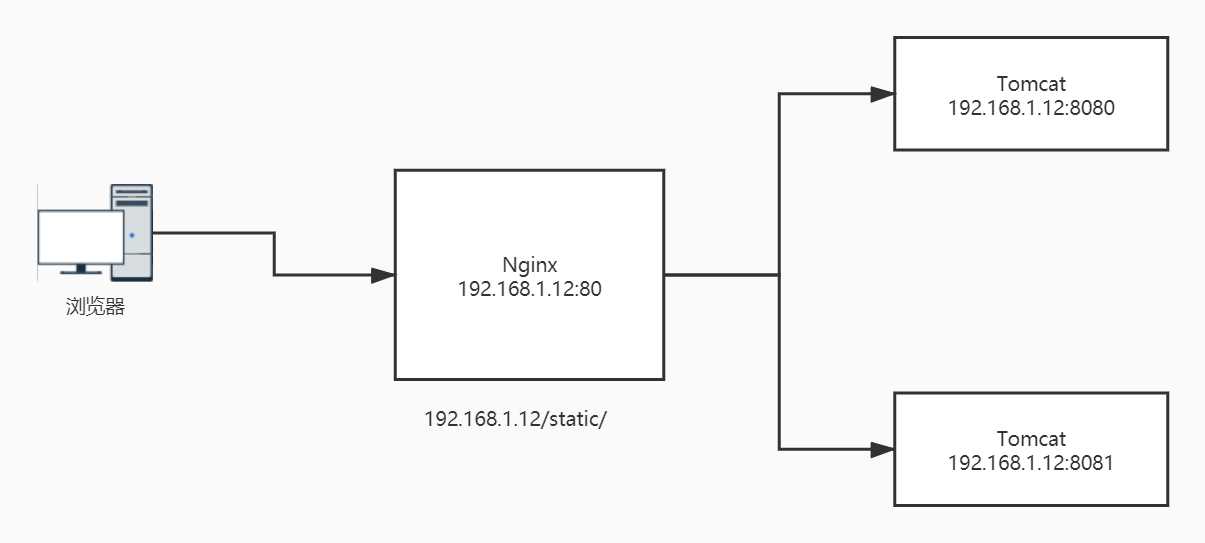

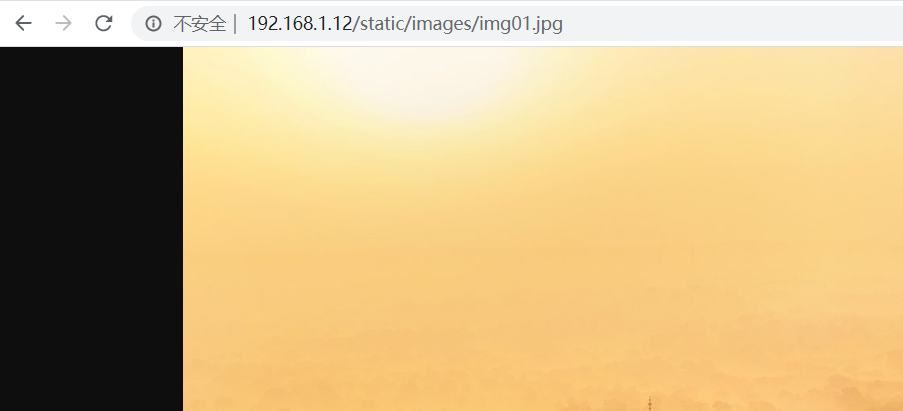

#### 本例接着上一章负载均衡的基础上修改 示例效果: 当请求是以 /static/ 开头的我们则认为它是访问静态资源,这个时候我们就不需要去请求 Tomcat 了,直接在 Nginx 下处理 。  #### 配置 Nginx 动静分离 编辑 nginx 目录下的 /conf 目录下的 nginx.conf 配置文件。添加一个 location 模块。 `/static/` 表示 匹配请求中的 /static/ 请求将会进入这里处理, `root /mydata/;` 表示在服务器根目录中 /mydata/目录里面找到/static 目录; `autoindex on;` 表示列出请求/static/中的目录 ``` location /static/ { root /mydata/; autoindex on; } ```  #### 新建静态资源目录 在服务器根目录中新建 /mydata/static/images/ 目录,里面放一张img01.jpg的图片 #### 重启Nginx,测试访问 http://192.168.1.12/static/images/img01.jpg  测试访问正常
